Removal
REMOVAL 1.
Disconnect the negative battery cable.
2.
Remove the engine cover. Grasp both corners of the engine cover, and pull up firmly.
3.
Disconnect the Manifold Absolute Pressure (MAP) sensor harness connector.
4.

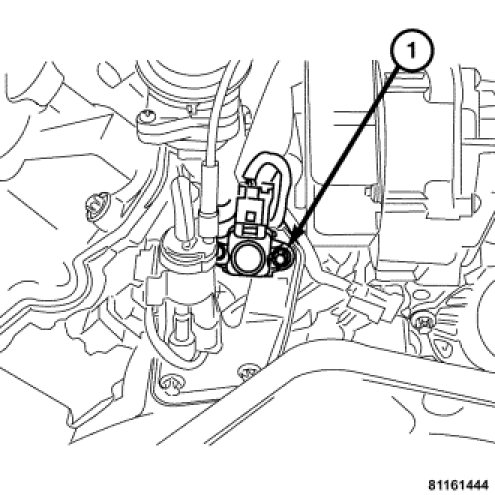

Remove the retaining bolt (1).
5.
Remove the MAP sensor.
