Downstream O2

DOWNSTREAM O2

1. Disconnect the negative battery cable.

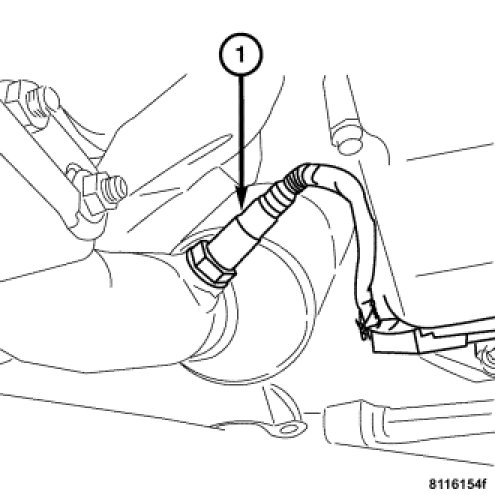

NOTE: The left side O2 sensor is shown. The right side is similar.

2. Raise and support the vehicle.
3. Disconnect the O2 sensor harness connector.
4. Remove the O2 sensor (1).
