Upstream O2 Sensor

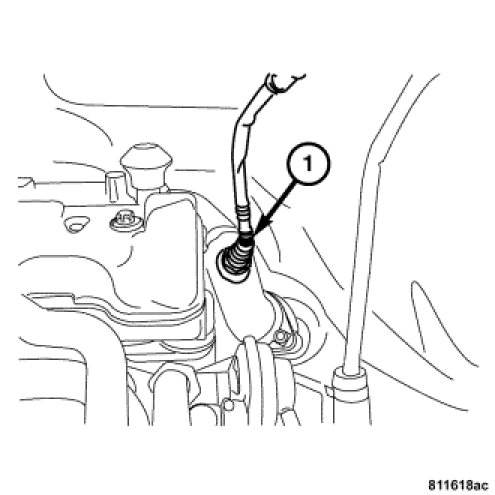

UPSTREAM O2 SENSORNOTE: The left side O2 sensor is shown. The right side is similar. 1.
Disconnect the negative battery cable.
2.
Remove the engine cover. Grasp both corners of the engine cover, and pull up firmly.
3.
Disconnect the O2 sensor harness connector.
4.
Remove the O2 sensor (1).
