Installation
INSTALLATION 1.

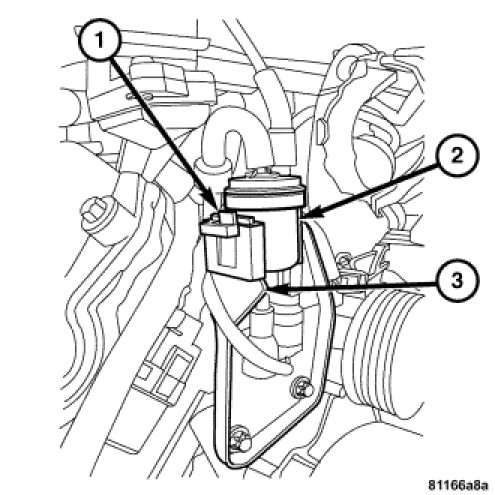

Position the air pump switchover
solenoid (2) above air pump switchover solenoid mounting bracket (3) and lower until air pump switchover solenoid locking tab (1) snaps into place.
2.

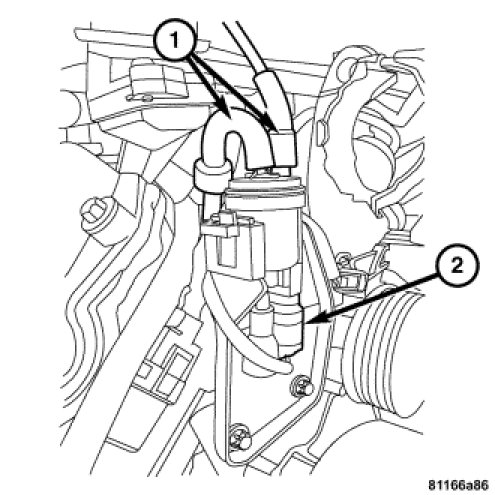

Connect the vacuum lines (1).
3.
Connect the air pump switchover
solenoid harness connector (2).
4.
Install the
air cleaner housing.
5.
Connect the negative battery cable.
