Installation
INSTALLATION 1.

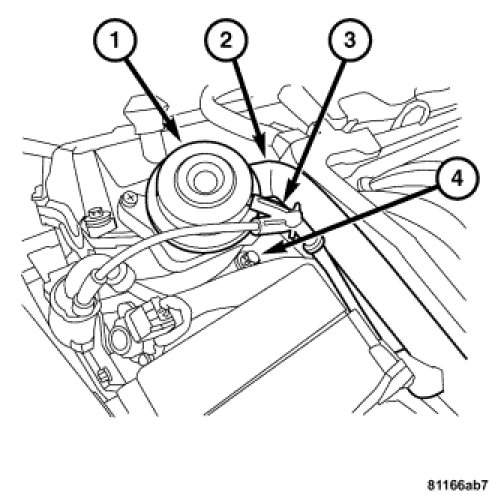

Position the new gasket between intake manifold and air pump switchover valve (1).
2.
Install the retaining bolt (4). Tighten bolt to 20 Nm (177 in. lbs.).
3.
Connect the vacuum line (3).
4.
Connect the air pump switchover tube (2).
5.
Install the
air cleaner housing.
6.
Connect the negative battery cable.
