Ignition Coil - Installation







INSTALLATION

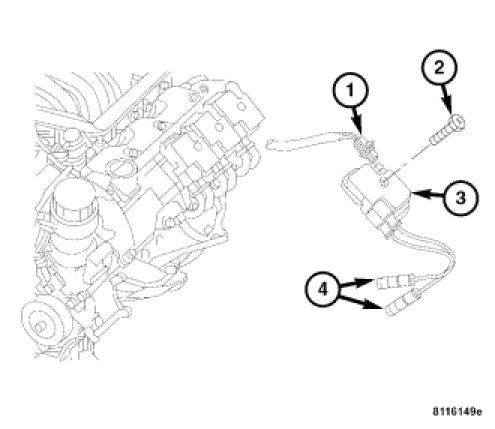

1. Position the ignition coil (3) on the cylinder head cover.
2. Install the ignition coil retaining bolt (2). Tighten the bolt to 8 Nm (71 in. lbs.).
3. Connect the ignition coil wire harness connector (1) to the coil pack.




NOTE: When installing the spark plug cables, route the cables correctly. Failure to route the cables properly can cause improper spark plug phase-shift.

4. Install the spark plug cables to the appropriate coil tower (A & B) (coil side).
5. Install the spark plug cables to the appropriate spark plug location (G & K) (plug side).

NOTE: Refer to the reference pad cast into the cylinder head cover to identify proper spark plug/spark plug cable orientation.





NOTE: When installing spark plug cables, insure a positive connection is made. A snap should be felt when a good connection is made between the spark plug cable and the spark plug.

6. Insure a firm connection is made from the spark plug cables (2) to the spark plugs.

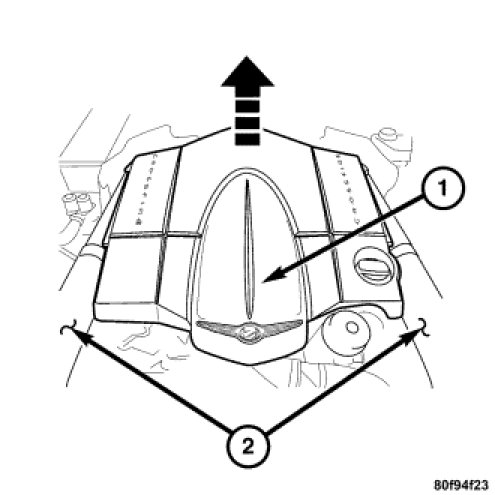

7. Install the engine cover (1). Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.

NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.

8. Connect the negative battery cable.
