Transmission Control Module - Removal

TRANSMISSION CONTROL MODULE - LHD





1. Un-snap and remove the carpet floor mat.

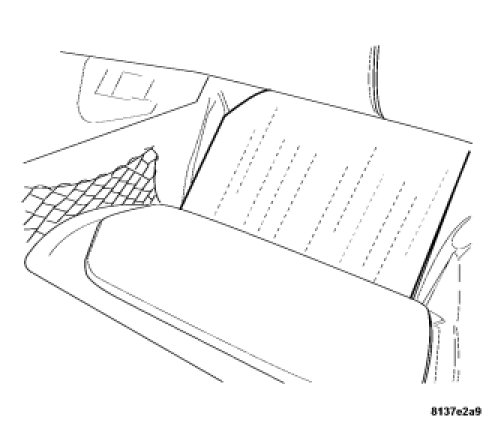

2. Fold back the carpeting in the passenger footwell to expose the foam insulation panel.
3. Remove the foam insulation panel.




NOTE: It is not necessary to remove the electrical connectors to rotate the base plate in the passenger footwell.

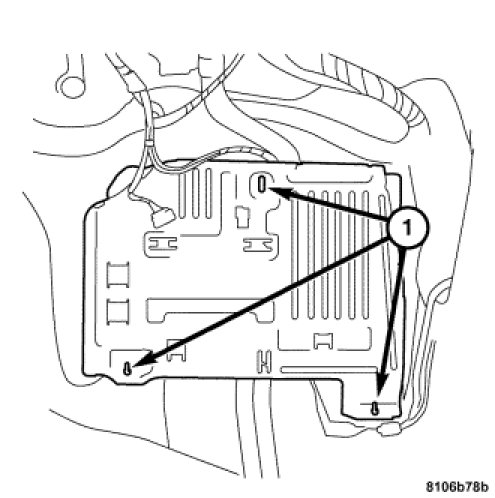

4. Remove the three plastic retaining nuts (1) from the floor panel studs.
5. Lift the base plate and rotate the top of the base plate toward the rear of the vehicle to expose the TCM.

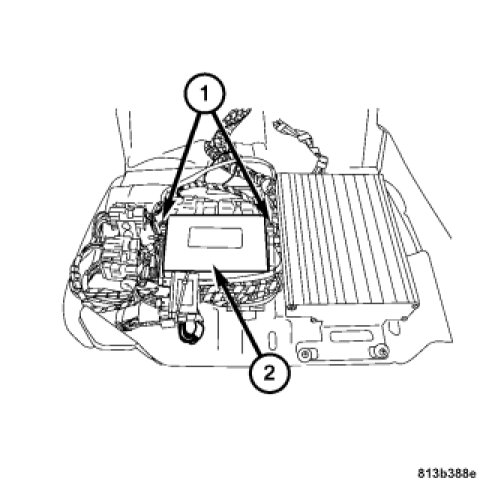

6. Remove the two retaining screws (1) from the base plate, and disconnect the TCM harness connectors.
7. Remove the TCM (2) from the base plate.
