Fuel Pressure: Specifications
FUEL DELIVERYFUEL SYSTEMNominal working pressure is 3.7 - 4.1 bar (54 - 60 psi).
Allowable leak down (engine off) pressure after 30 minutes is 2.5 bar (36 psi).
Minimum fuel delivery rate is 1 liter (1.05 qt.) in a maximum of 35 seconds.
Fuel pump amperage draw range is 4 - 9 amps.

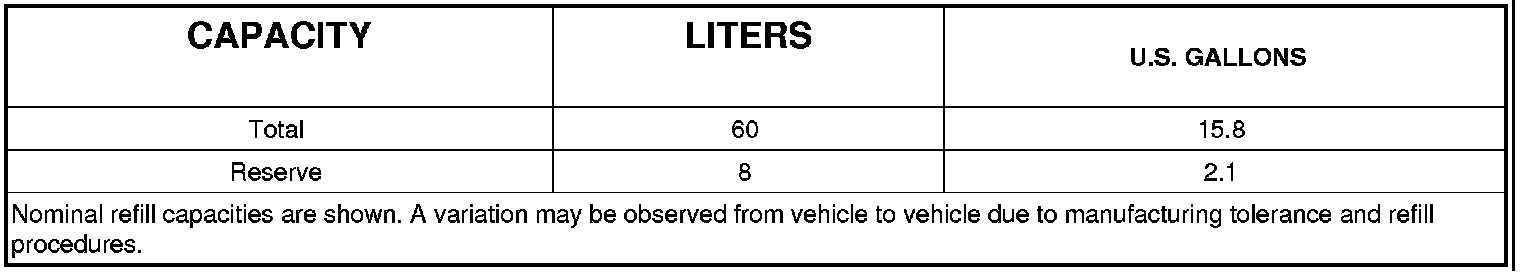

FUEL CAPACITY
