Installation







INSTALLATION





NOTE: When installing the spark plug cables, route the cables correctly. Failure to route the cables properly can cause improper spark plug phase-shift.

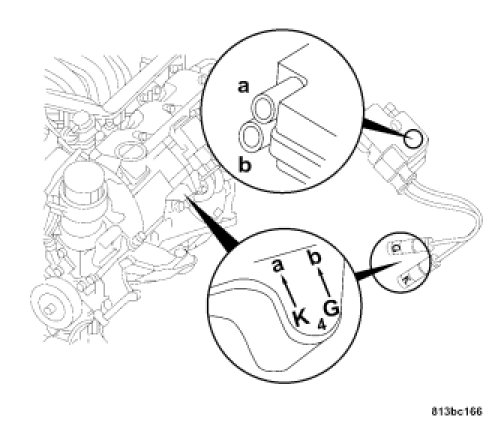

1. Install the spark plug cables to the appropriate coil tower (A & B) (coil side).
2. Install the spark plug cables to the appropriate spark plug location (G & K) (plug side).

NOTE: Refer to the reference pad cast into the cylinder head cover to identify proper spark plug/spark plug cable orientation.





NOTE: When installing spark plug cables, insure a positive connection is made. A snap should be felt when a good connection is made between the spark plug cable and the spark plug.

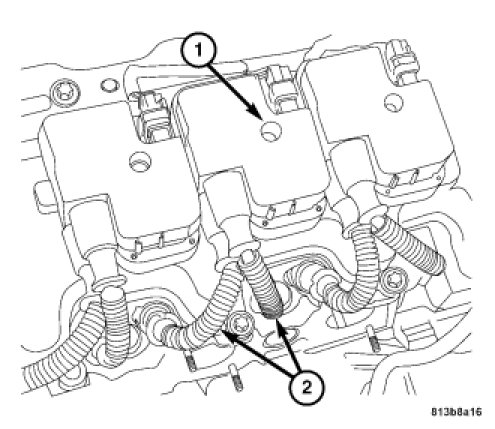

3. Insure a firm connection is made from the spark plug cables (2) to the spark plugs.
