Wiper Module - Removal

REMOVAL





NOTE: If possible, cycle the Wiper System to position the wiper arms and linkage in the park position before removal is attempted.

1. Disconnect the negative battery cable.

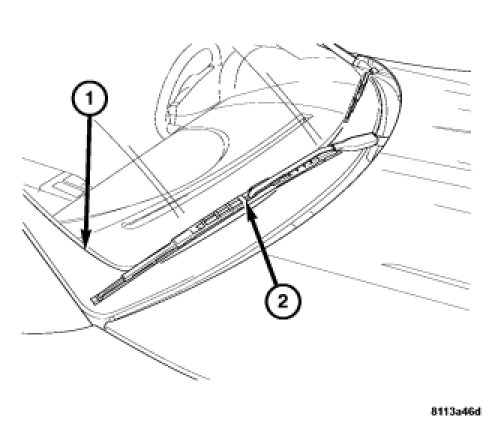

2. Remove the wiper arms. Wiper Arms - Removal.
3. Remove the cowl grille. Cowl Moulding / Trim.

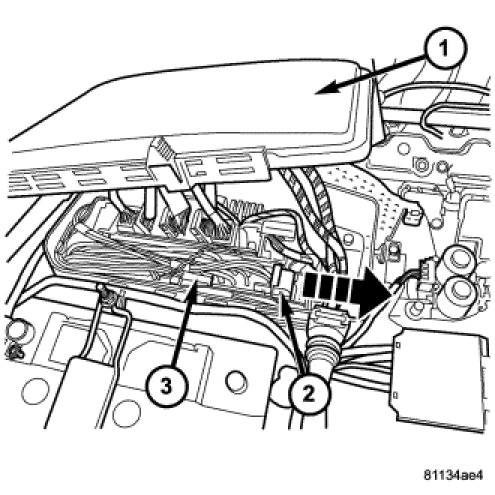

4. Remove the control module box cover (1).
5. Unlock and disconnect the wiper motor harness connector (2) from the Body Control Module (BCM) (3).

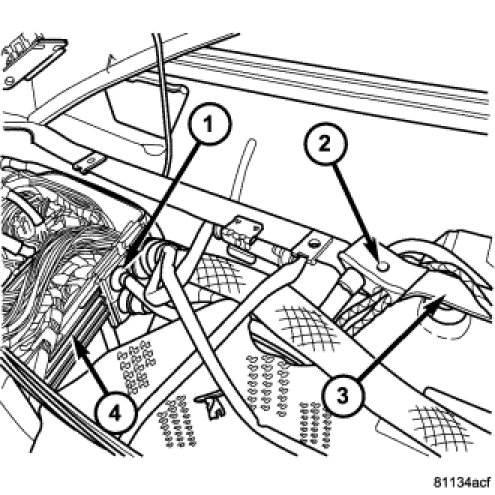

6. Remove the wiper motor harness rubber grommet (1) from the control module box (4).
7. Remove the wiper motor harness rubber grommet (2) from the cowl ledge (3).

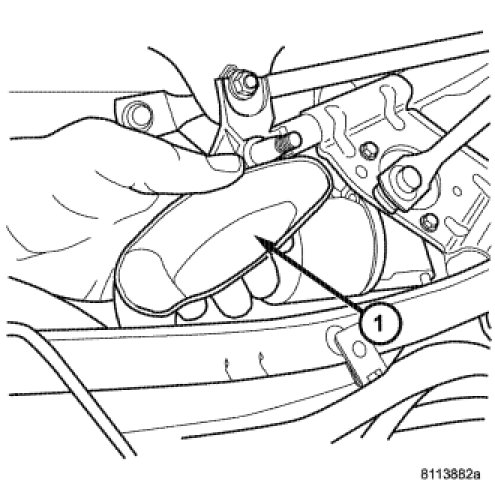

8. Rotate the cowl grille drain (1) counterclockwise, then lift upward and remove from the cowl.

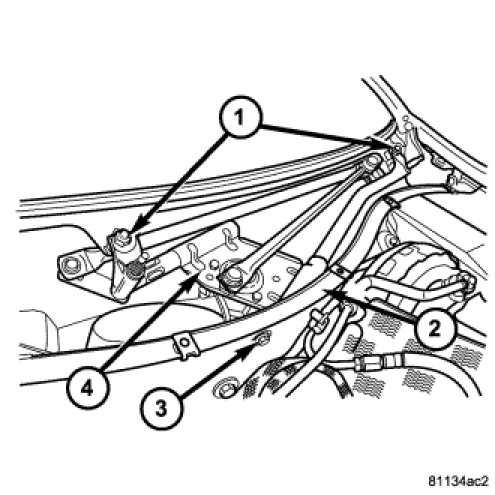

9. Remove the lower wiper module attachment bolt (3) under the cowl ledge (2).
10. Remove the two upper wiper module attachment nuts (1).

CAUTION: Do not allow the wiper module to contact the windshield.

11. Remove the wiper module (4) from the vehicle.
