Procedures
INSPECTION 1.
Inspect the Occupant Restraint Controller (ORC) with the scan tool.
2.
Read and record all DTCs.
3.

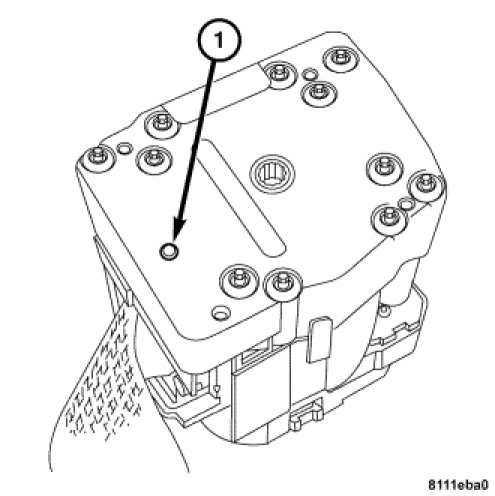

Inspect the
Seat Belt Tensioner squib status:
-
Red Pin (1) is visible: All squibs have been fired.
-
Red Pin (1) is not visible: All squibs have not been fired.
