Firing Order
DESCRIPTION

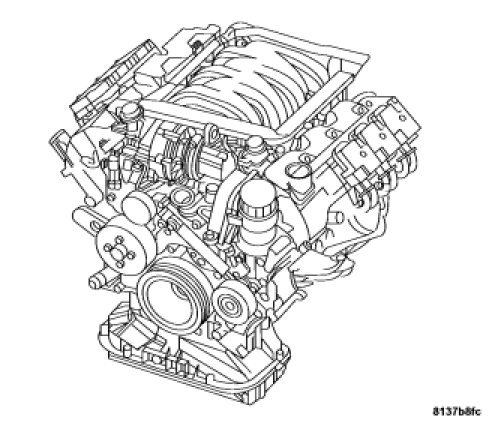

The 3.2L (195.2 cu. in.) engine is a SOHC 18-Valve 90° V-6. The engine is a modular design. The engine uses a 90-degree V-angle rotating assembly which provides space for long intake manifold runners which provide high torque across a broad range of engine speeds for driving ease. The engine uses a split-pin crankshaft to provide even firing, and a balance shaft to compensate for the rocking motion which occurs with a 90-degree V-6.
Firing Order 1-4-3-6-2-5
Number 1 Cylinder is on the right bank
