Propeller Shaft Runout

PROPELLER SHAFT RUNOUT

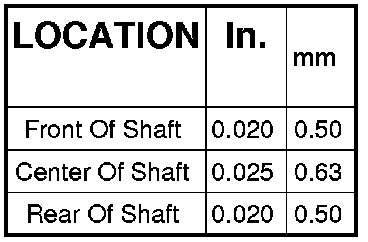

NOTE: Measure front/rear runout approximately 3 inches (76 mm) from the weld seam at each end of the shaft tube for tube lengths over 30 inches. For tube lengths under 30 inches the maximum allowed runout is 0.020 in. (0.50 mm) for the full length of the tube.
