Installation







INSTALLATION





CAUTION: The steering lock and lock cylinder can only be fitted in lock cylinder position "1". Never turn the steering lock when the ignition/starter switch is not fitted.

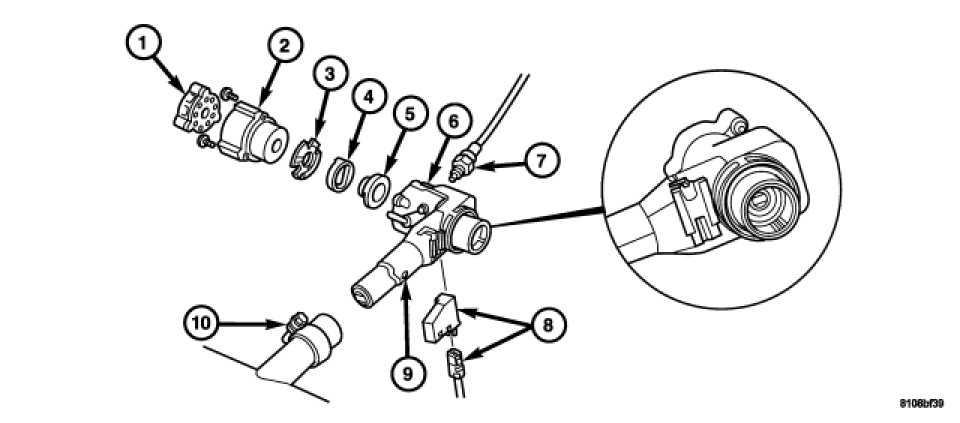

1. Install the washer (3) and the parking lock valve (4).

NOTE: The ignition switch must not be turned out of position "1" when the ignition/starter switch is not fitted, otherwise the steering lock is locked permanently.

2. Install the ignition switch (2).
3. Install the connector from the ignition/starter switch (1).
4. Install the clamp (9), press in locking pin to install the steering lock (6) to the steering column.
5. Install the warning buzzer contact switch (8).
6. Install the parking lock interlock cable (7).
7. Install the connector from the warning buzzer contact (10).
8. Install the key cylinder.Key/Lock Cylinder - Installation.
9. Install the transponder coil.
10. Install the lower instrument panel cover.Instrument Panel - Removal.
