Steering System







STEERING SYSTEM

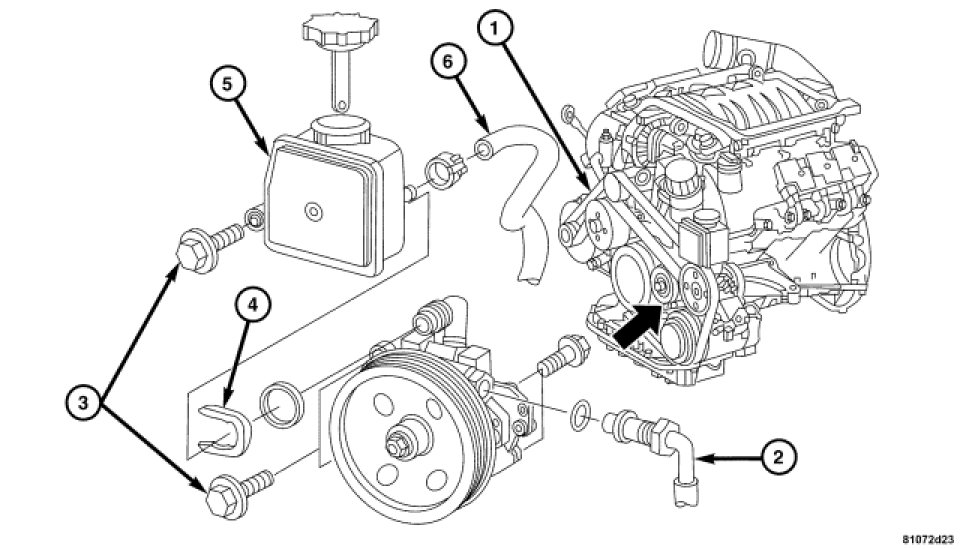

The Power Steering Pump is a constant flow rate and displacement vane type pump. The Pump Reservoir is attached to the pump body. The pump is connected to the steering by the pressure and return hoses. The Steering Gear used is a recirculating ball type gear. A column provides steering input.

The Power Steering System consists of the following components:

- Steering Gear
- Power Steering Pump
- Reservoir
- Pressure Hose
- Return Hose
