Installation

IDLER ARM - LHD

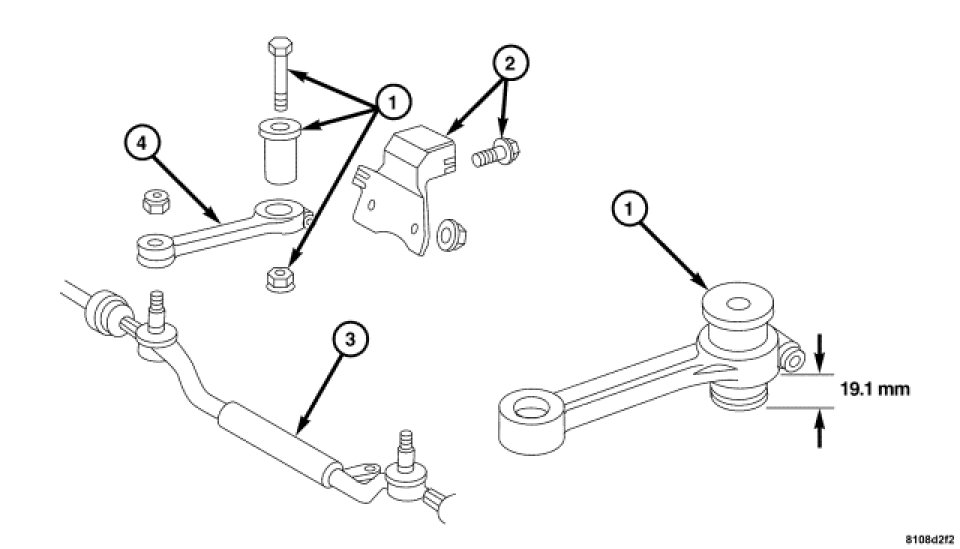

1. Install the idler arm bushing to the idler arm (4).
2. Adjust the idler arm bushing to the reference dimension.
3. Install the idler arm pinch bolt. Tighten to 30 Nm (22 ft. lbs.).
4. Install the idler arm to the vehicle.
5. Install the nut and bolt on the idler arm. Tighten to 50 Nm (37 ft. lbs.).
6. Install the heat shield (2).
7. Install the drag link to the idler arm. Tighten to 50 Nm (37 ft. lbs.).
