Front Lower Control Arm - Installation







INSTALLATION





1. Install the lower control arm to the vehicle.

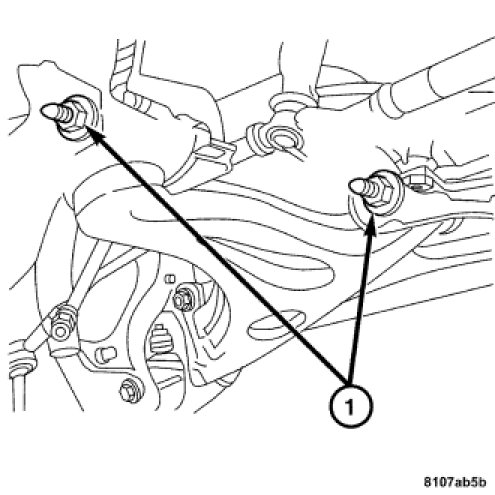

2. Install the two bolts (1) attaching the lower control arm to the frame. Tighten to 120 Nm (88 ft. lbs.).




3. Install the nut (2) attaching the lower control arm to the steering knuckle lower ball joint. Tighten to 45 Nm (33 ft. lbs.).

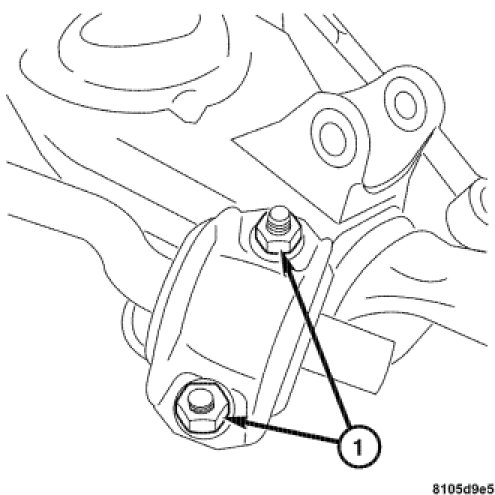

4. Install the sway bar clamp and bolts (1) to the lower control arm. Tighten to 20 Nm (15 ft. lbs.).

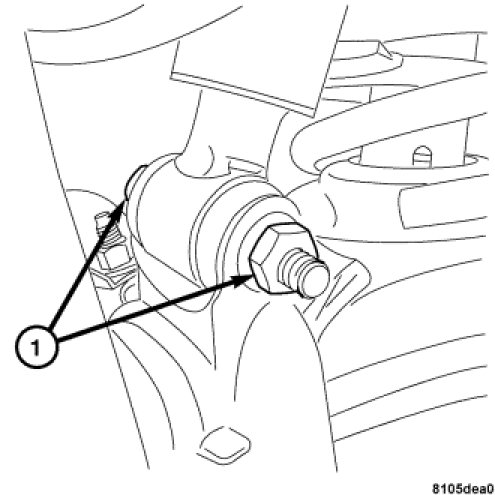

5. Install the shock absorber bolt and nut (1) to the lower control arm. Tighten to 55 Nm (41 ft. lbs.).




6. Install the front spring (1). Front Spring - Installation.
7. Lower the vehicle and check vehicle alignment. Service and Repair.
8. Install the front wheel and tire assembly. Procedures.
