Front Upper Control Arm - Installation







INSTALLATION





WARNING: Tighten all nuts and bolts with the vehicle at normal ride height.

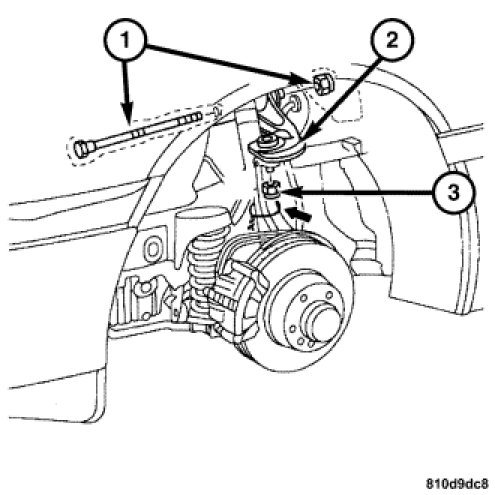

1. Install the upper control arm (2) and the bolt and nut (1) to the body. Tighten to 65 Nm (48 ft. lbs.)

NOTE: Clean the ball joint tapered bolt and mounting hole of the steering knuckle.

2. Install the upper ball joint (3) to the steering knuckle. Tighten to 45 Nm (33 ft. lbs.)
3. Remove the wire tie attaching the steering knuckle to the shock absorber.
4. Lower the vehicle and check vehicle alignment. Service and Repair.
5. Install the wheel and tire assembly. Procedures.
