Rear Lower Control Arm - Installation







INSTALLATION





CAUTION: Vehicle must be at normal ride height before tightening components to specified torque.

1. Install the bolt attaching the rear lower control arm (4) to the rear wheel carrier. Tighten to 70 Nm (52 ft. lbs.)

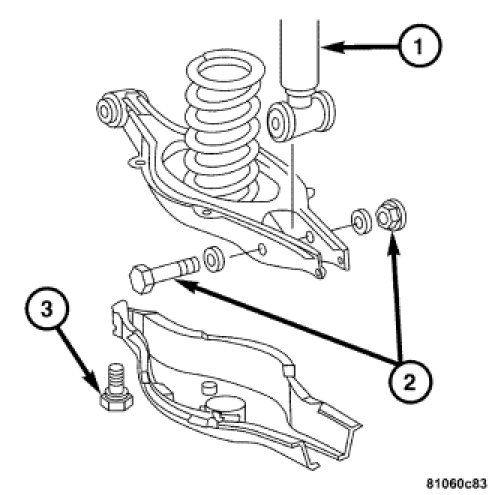

2. Install the rear shock absorber (1). Installation.

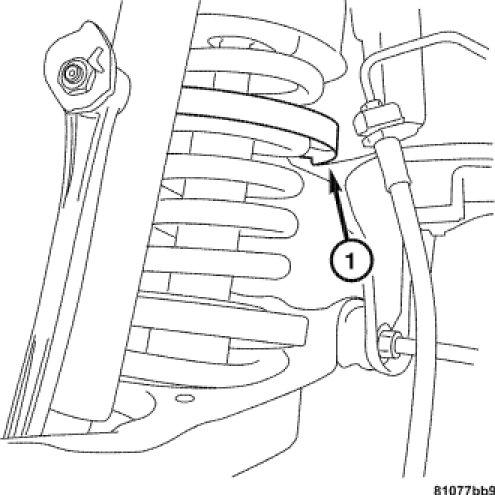

3. Install the rear spring (1). Rear Spring - Installation.




4. Install the rear lower control arm to the vehicle. Tighten to 70 Nm (52 ft. lbs.).

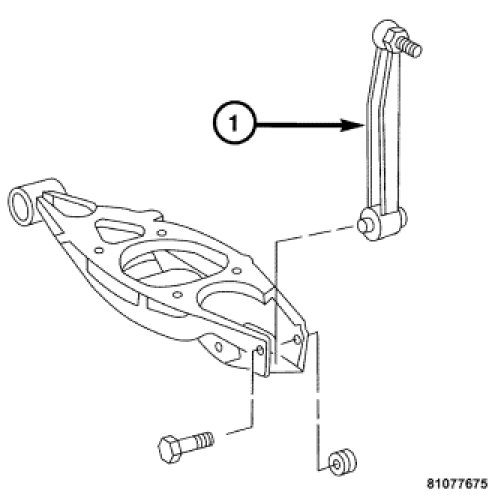

5. Install the rear stabilizer bar link (1) to the rear lower control arm. Tighten to 20 Nm (15 ft. lbs.).




6. Install the rear lower control arm plastic shield bolt (1).
7. Install the wheel and tire assembly.
8. Check vehicle alignment. Service and Repair.
