Installation

INSTALLATION





1. Install the trailing link onto the vehicle.

CAUTION: Vehicle must be at normal ride height before tightening components to specified torque.

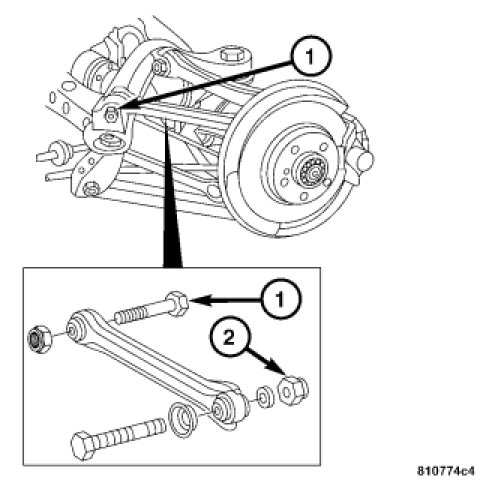

2. Install the outer trailing link bolt (2) attaching the trailing link to the wheel carrier.
3. Install the inner trailing link bolt (1) attaching the trailing link to the rear axle carrier.
4. Install the wheel and tire assembly.
5. Lower the vehicle so it is not being supported by the lift.
6. Tighten the outer trailing link bolt attaching the trailing link to the wheel carrier to 70 Nm (52 ft. lbs.).
7. Tighten the inner trailing link bolt attaching the trailing link to the rear axle carrier to 70 Nm (52 ft. lbs.).
8. Check vehicle alignment. Service and Repair.
