Disassembly

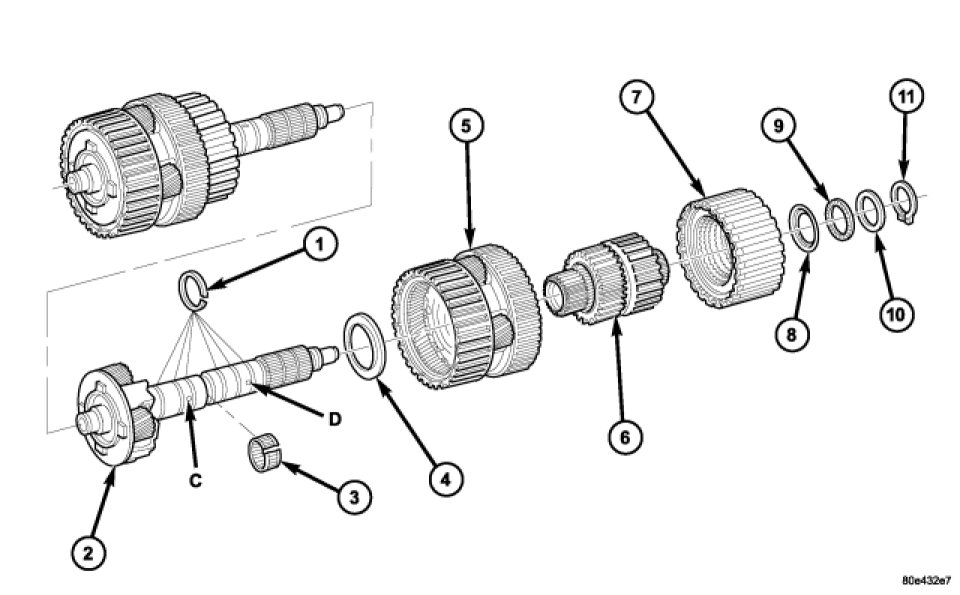

DISASSEMBLY 1.
Remove upper two visible Teflon rings (1) from output shaft.
2.
Remove retaining ring (11), shim (10), thrust needle bearing (9) and thrust washer (8) from output shaft.
3.
Remove clutch K3 (7).
4.
Remove rear tubular shaft/freewheeling clutch F2 (6) from output shaft.
5.
Remove rear gear set (5) with integrated tubular shaft of center gear set from output shaft.
6.
Remove thrust washer (4).
