Installation
INSTALLATION 1.

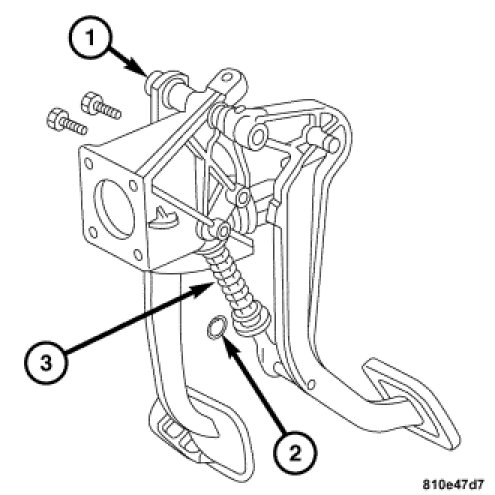

Install the clutch pedal on the pivot (1).
2.
Install the return spring (3) and the circlip (2).
3.

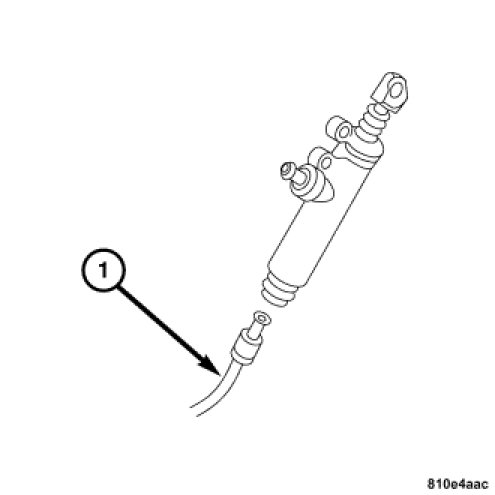

Install the
clutch master cylinder fluid pressure line (1)
Clutch Master Cylinder - Installation.
4.
Install the driver side upper instrument panel (1)
Instrument Panel - Installation.
5.
Install the driver side lower instrument panel
Instrument Panel - Installation.
