Removal
REMOVAL 1.
Remove the transmission
Manual Transmission/Transaxle - Removal.
2.
Loosen the bolts (1) on the clutch cover.
3.
Mark the relation of the clutch cover to the
flywheel.
NOTE: Gradually remove the clutch cover bolts 1 to 1 1/2 turns at a time. 4.
Remove the bolts (1) on the clutch cover.
5.

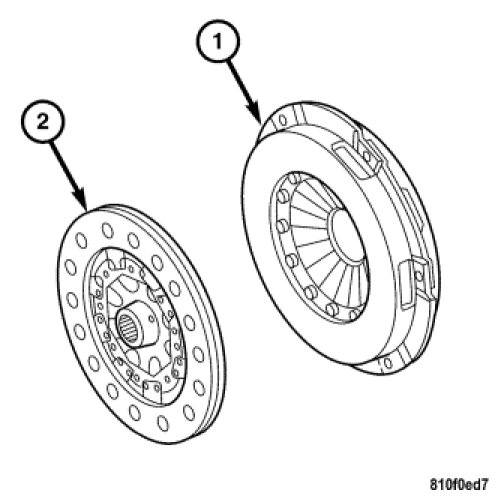

Remove the clutch cover (1).
