Operation

OPERATION

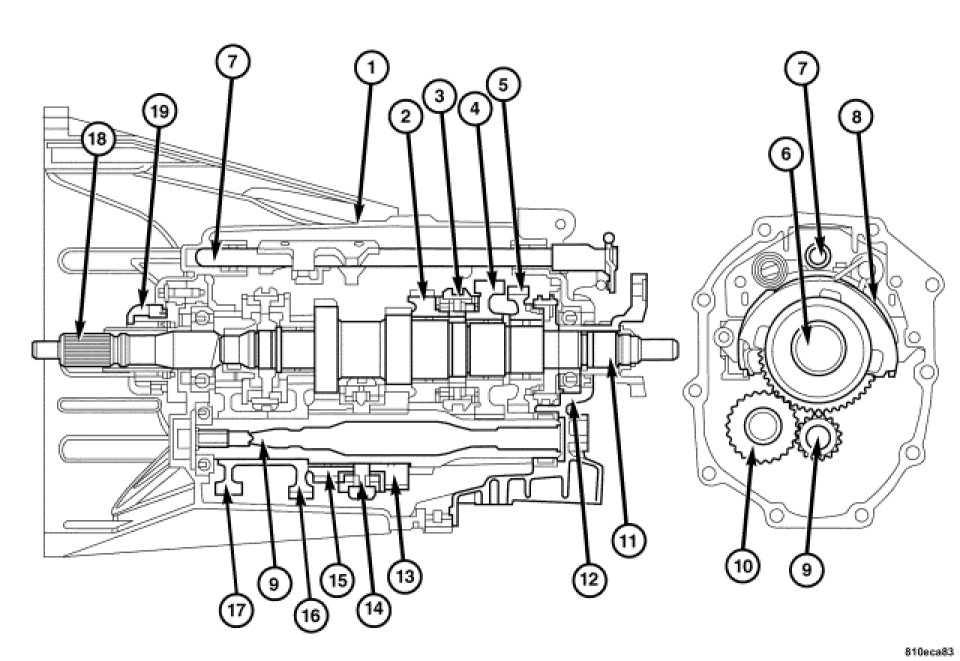

The gear assemblies and shafts are located between two bearing planes. The divided transmission housing is made up of a light metal alloy, the housing parts of which are sealed with liquid sealing agent. The input shaft is supported by a pilot bearing in the flywheel and by a deep-groove ball bearing in the transmission housing. The main shaft and input shaft are inserted into each other on a common shaft plane in the transmission housing and are supported by deep-groove ball bearings. The countershaft is designed as a hollow shaft to reduce weight and is supported by a deep-groove ball bearing and a roller sleeve. The shaft play does not have to be adjusted due to the very tight production tolerances of the gear wheels and housing halves, as well as the use of roller sleeves.
