Installation







INSTALLATION





NOTE: Be sure that the foam insulation remains in position around the opening in the floor pan.

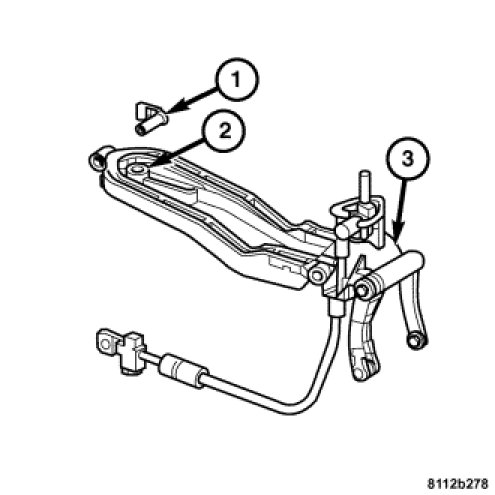

1. Position the shift mechanism (3) in the vehicle above the transmission and install the retaining pin (1). Connect the shift rod (2) to the ball stud.

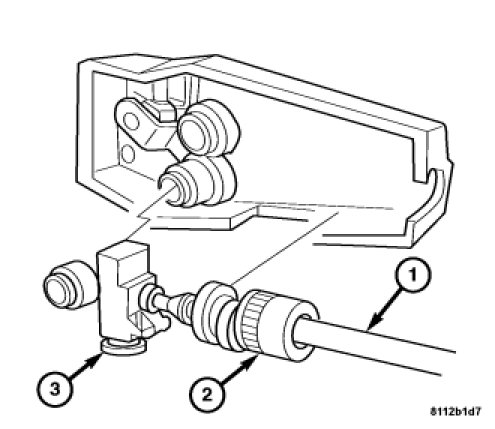

2. Press the release button (3) and install the reverse lockout cable (1) in the bracket. Tighten the lock nut (2).
3. Install the propeller shaft. Propeller Shaft - Installation.
4. Lower the vehicle.




5. Install the boot (3), the cover (4), the spring (5) and washer (6) on the shift mechanism.
6. Press down on the washer (6) and install the retaining pin (2).
7. Install the gear shift lever handle (1). Installation.
8. Adjust the shifter and cable assembly Adjustments.
9. Connect the negative battery cable.
