Power Window Motor: Locations
Component ID:
253
Component :
RIGHT FRONT POWER WINDOW MOTOR

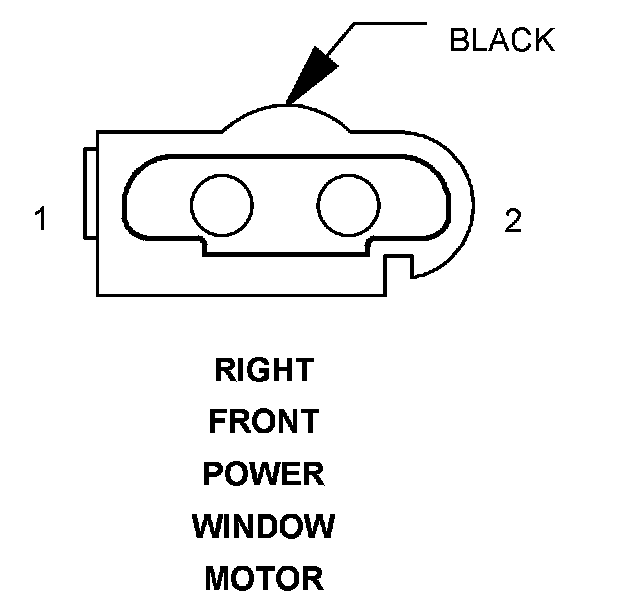

Connector:
Name :
RIGHT FRONT POWER WINDOW MOTOR
Color :
BLACK
# of pins :
2
Pin Circuit Description 1
14DG
RIGHT FRONT POWER WINDOW DRIVER (UP)
2
14BK
RIGHT FRONT POWER WINDOW DRIVER (DOWN)
Component Location - 20
