Removal

REMOVAL

WARNING: Wear eye and hand protection when handling glass. Personal injury can result.

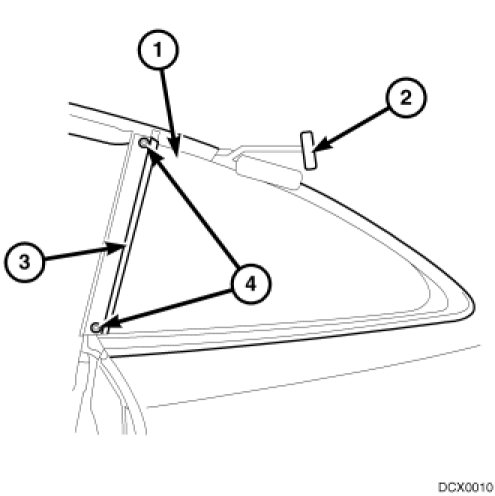

1. Position aside weatherstrip (3).
2. Cut urethane bonding from around quarter window glass (1) using a suitable sharp cold knife (2). A pneumatic cutting device can be used if available.

CAUTION: Do not damage body or trim finish when cutting out glass or applying fence primer.

3. Remove quarter glass screws (4).
4. Separate glass (1) from vehicle.
