Component Tests and General Diagnostics







DIAGNOSIS AND TESTING - WINDSHIELD WIPER/WASHER SYSTEM

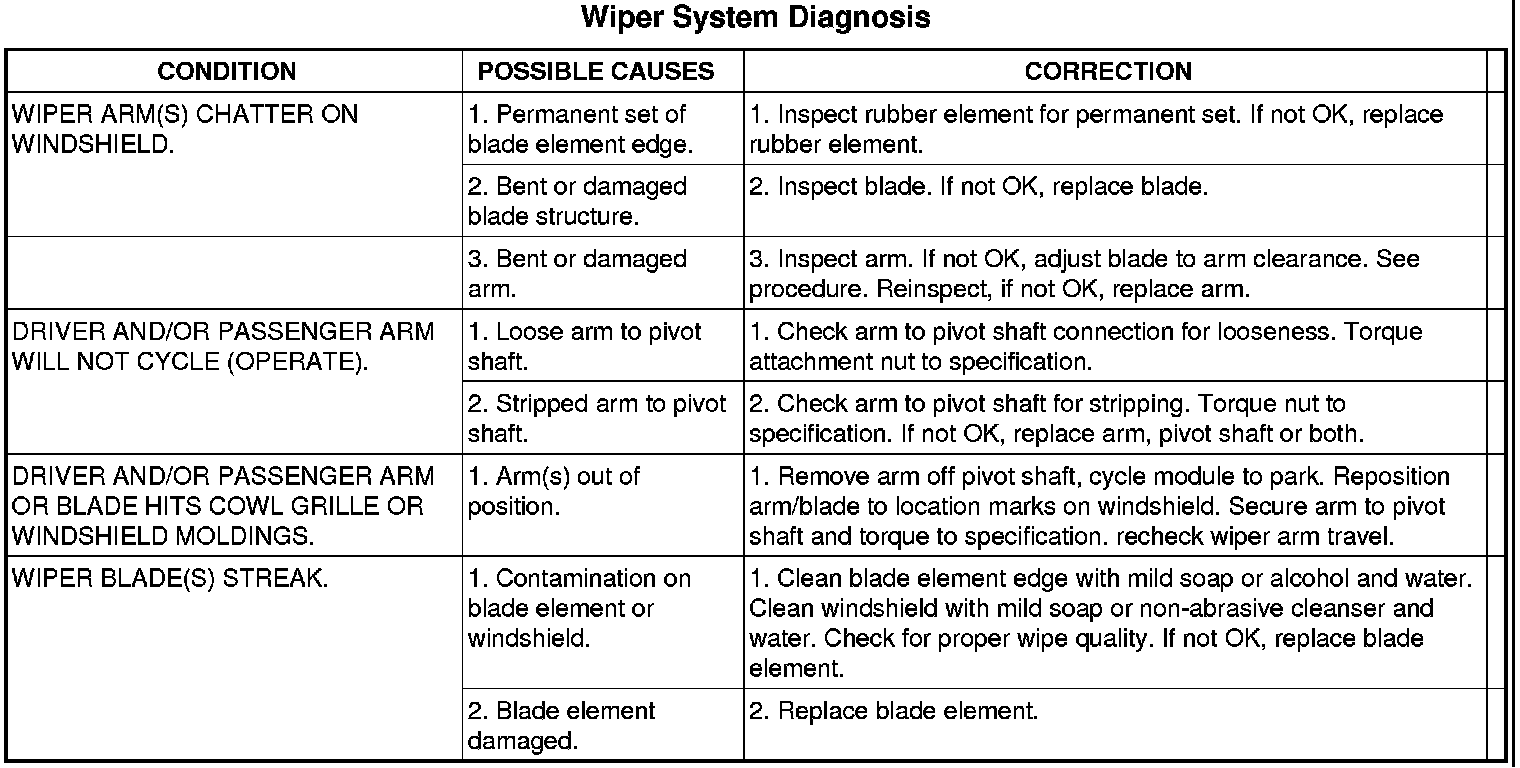

Windshield Wiper System

Whenever a windshield wiper or washer system malfunction occurs, disconnect the harness connections and clean the terminals. Ensure the wire harness is properly connected before starting diagnosis and repair procedures. For complete windshield wiper/washer schematics and diagrams, see wipers/washers electrical diagnostics. Schematics and Diagrams.

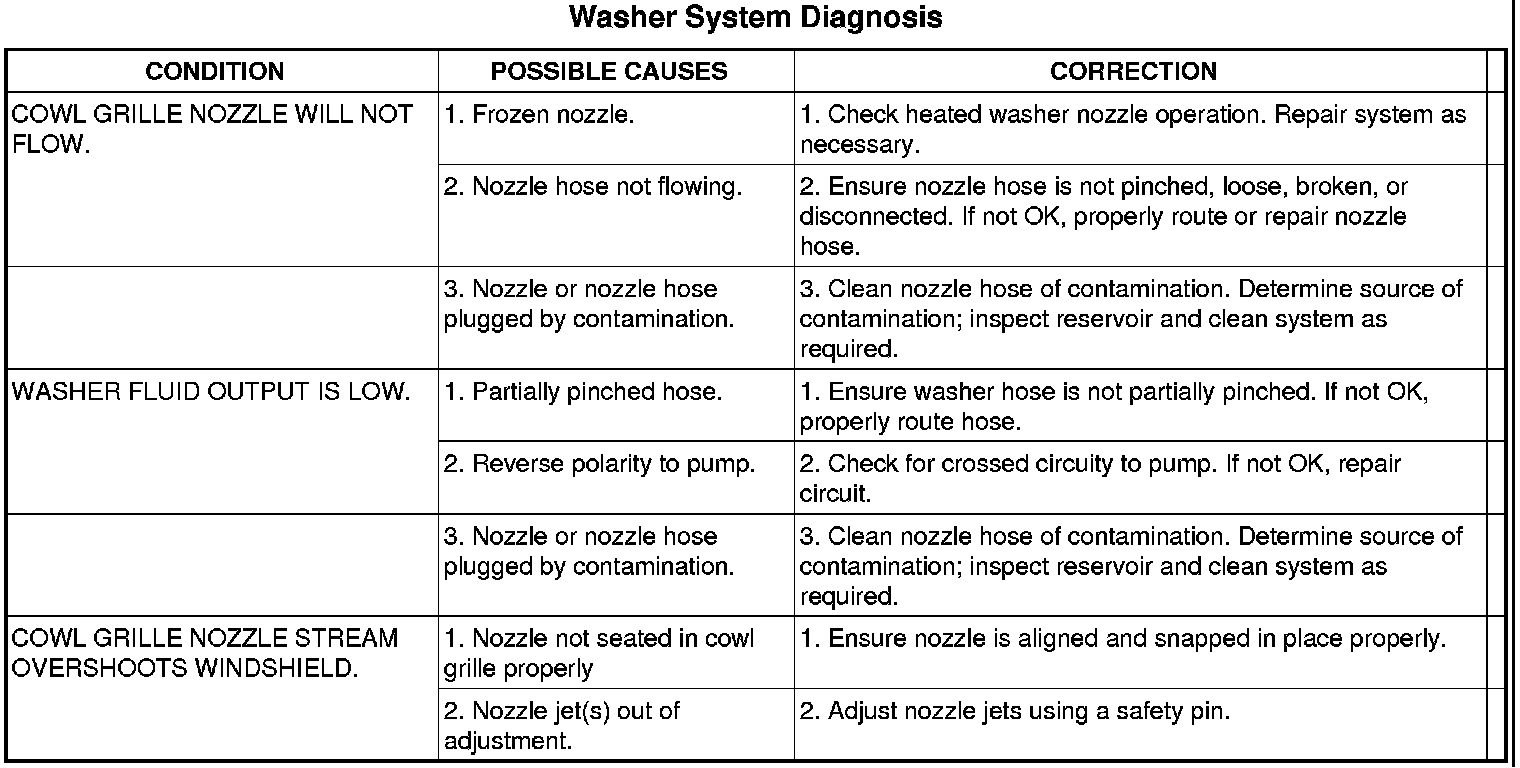

Windshield Washer System
