Removal

REMOVAL

1. Remove the right front inner fender liner.
2. Release the washer hose attachment clamp, then remove the washer hose (1) from the washer pump motor (2).

3. Remove the cowl grille. Removal.

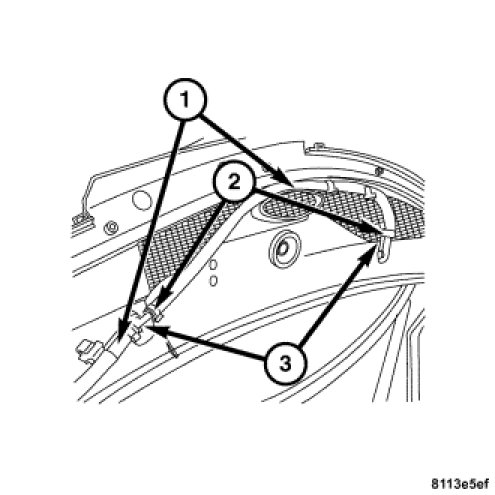

4. From the underside of the cowl grille, remove the washer hose attachment clamps (2) and release the two washer hose retaining clips.
5. Remove the washer hose (1) from the washer nozzles (3).
6. Pull the washer hose from the cowl opening and remove the washer hose from the vehicle.
