Procedures

STANDARD PROCEDURE - WASHER NOZZLE AIMING

CAUTION: During the adjustment procedure, be careful not to damage the inside opening of the washer nozzle jet.

NOTE: Be sure to check that each washer nozzle is properly secured into the cowl grille before attempting any adjustments.





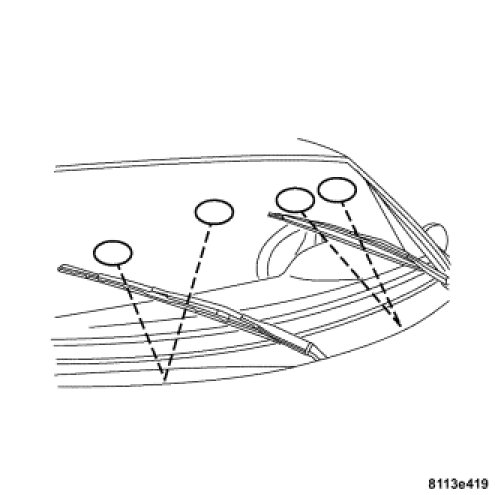

This model is equipped with two adjustable heated washer nozzles. The right and left nozzles are identical. Both nozzles emit two spray streams onto the windshield wiper sweep pattern. To aim, perform the following steps:

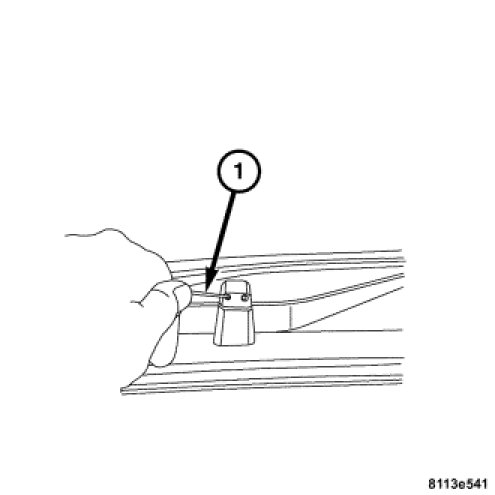

1. Using a safety pin (1), adjust each nozzle jet as required to aim the spray within the wiper sweep pattern.
2. Each adjustment of the jet should be checked by actuating the washer system switch from inside the vehicle.
3. After adjustment, a final check of the spray pattern should be done by actuating the washer system switch from inside the vehicle with the engine idling.
