Installation

INSTALLATION

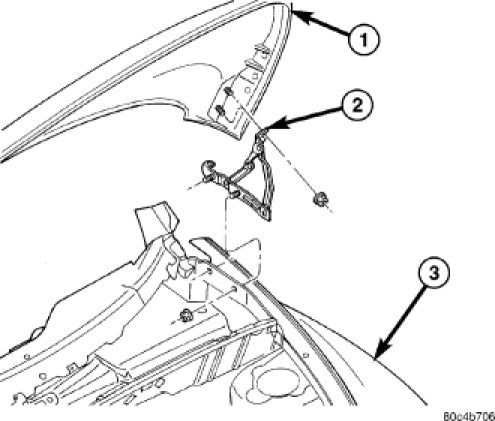

1. With the aid of an assistant, support and position the hood (1) to the hinges (2) and loosely install the nuts that secure the hood to the hinges.
2. Align the hood to the hinges using the previously marked locations.
3. Tighten the nuts that secure hood to the hinges to 28 Nm (21 ft. lbs.).
4. Connect the washer supply hose to the washer nozzle and install the silencer to the hood Washer Nozzle - Installation.
5. Verify hood alignment and operation. The hood should fit flush across the top surfaces along fenders and have even gaps aligned to 4 mm (0.160 in.) to the adjacent body panels.
