Decklid - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.

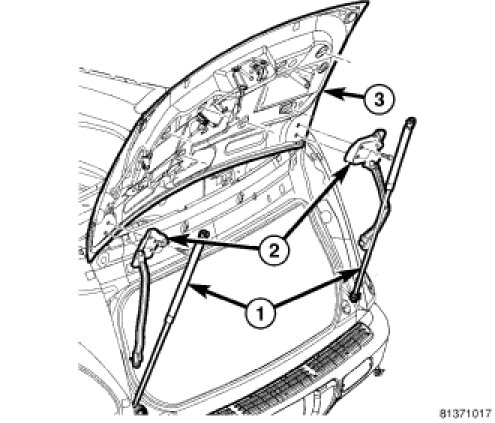

2. Release the decklid latch and open the decklid (3).
3. Remove the decklid trim panel Decklid Trim Panel - Removal.
4. Disconnect the decklid wire harness from the body wire harness.
5. Support decklid with a suitable lifting device and disengage the clips that secure the gas prop rods (1) to the decklid.
6. Remove the bolts that secure the decklid to the decklid hinges (2) and with assistance, carefully remove the liftgate the from vehicle.
