Sunroof Motor - Installation
INSTALLATION
1. If sunroof was open when drive motor was removed, carefully move glass panel into closed position and remove glass panel. Removal.

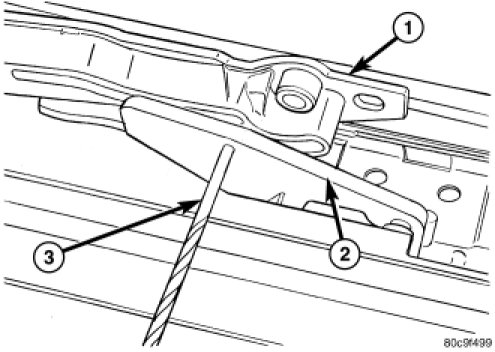

2. Set lifter arm (1) timing by manually sliding the mechanisms in the track until timing holes in the trollies are aligned with the timing holes in the lifter arm (1) cams and insert pins (3) into the mechanisms to hold mechanisms in closed position.
3. Place motor into position and install screws attaching motor to bracket.
4. Tighten the screws to 3 Nm (26 in. lbs.).
5. If sunroof glass panel was removed previously, remove the timing pins and install the sunroof glass panel. Installation.
6. Temporarily install sunroof switch and perform the sunroof motor initialization or re-initialization procedure Initialization or Re-Initialization.
7. Test sunroof operation, adjust glass as necessary. Adjustments.
8. Install headliner. Headliner - Installation.
