Front Door Glass Inner Belt Stabilizer - Installation

INSTALLATION - CONVERTIBLE

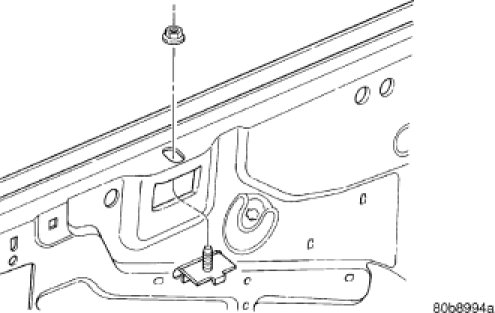

1. Place inner belt stabilizer into position.
2. Install nut attaching inner belt stabilizer to door panel. Adjust inner belt stabilizer against glass with enough tension to allow free up and down movement.
3. Install door trim panel.
