Installation

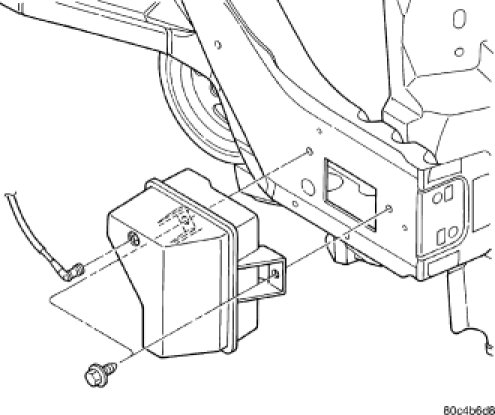

INSTALLATIONThe vacuum reservoir is located in the right front fender well on the frame rail. It is made of plastic.
1.
Connect hoses to reservoir.
2.
Install reservoir and tighten screws to 5 Nm (45 in. lbs.).
3.

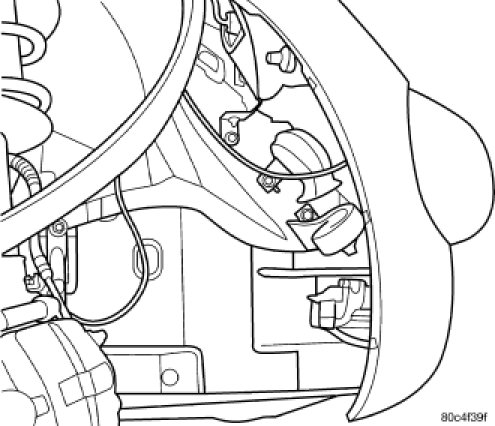

Install the inner splash shield.
4.
Lower vehicle.
5.
Install the negative battery cable.
6.
Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
