Shift Interlock Solenoid




Component ID: 349
Component : SOLENOID-BRAKE TRANSMISSION SHIFT INTERLOCK

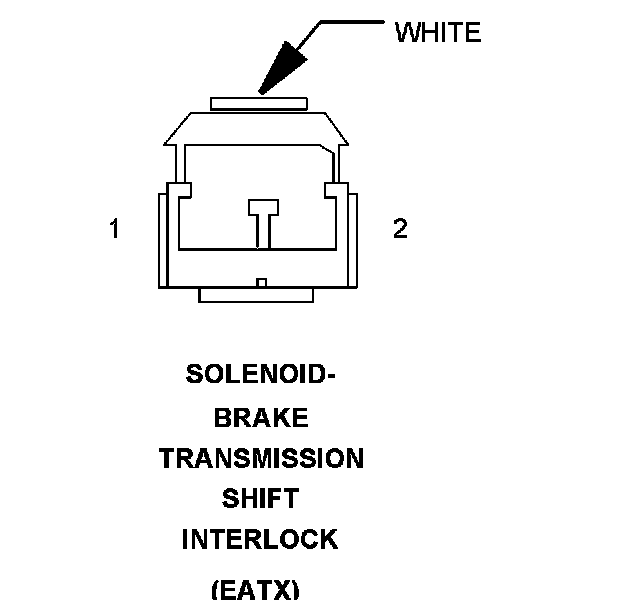

Connector:
Name : SOLENOID-BRAKE TRANSMISSION SHIFT INTERLOCK
Color : WHITE
# of pins : 2
Qualifier : (EATX)




Pin Circuit Description
1 Z906 20BK GROUND
2 K321 20BR/YL BRAKE SWITCH SIGNAL

Component Location - 27
