Sensor-Wheel Speed-ABS-Left Front

Component ID: 342
Component : SENSOR-WHEEL SPEED-ABS-LEFT FRONT

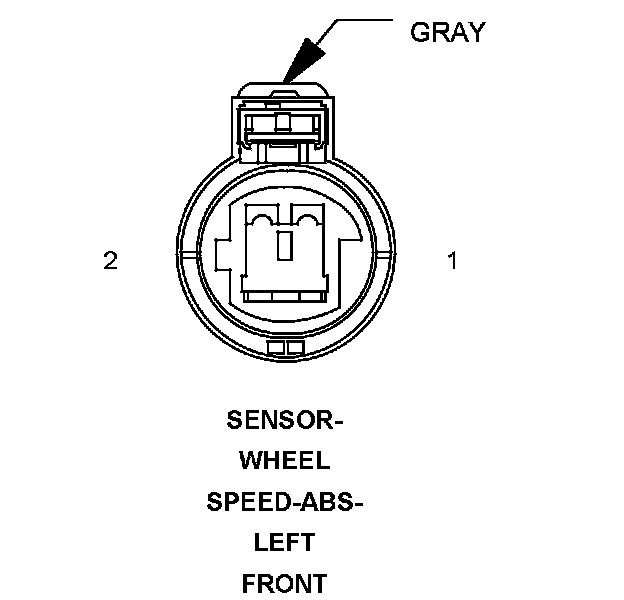

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color : GRAY
# of pins : 2




Pin Circuit Description
1 B9 20RD LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 B8 20RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL

Component Location - 1




Component Location - 3




Component Location - 10




Component Location - 13






Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color :
# of pins : 2
Qualifier : (SENSOR SIDE)




Pin Circuit Description
1 RD LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2 RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL

Component Location - 1




Component Location - 3




Component Location - 10




Component Location - 13
