Tail Lamp Unit - Removal

REMOVAL

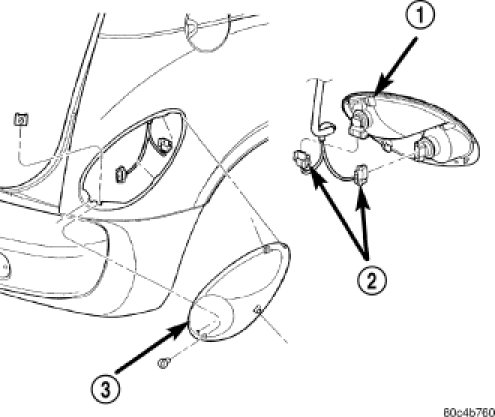

1. Remove screw attaching tail lamp assembly to the aperture panel.
2. Slide the lamp assembly downward in the sheet metal opening.
3. Remove the lamp assembly from the vehicle.
4. Remove the bulb sockets from the lamp assembly by rotating the sockets counterclockwise until free of the assembly.
