Ignition Coil - Installation

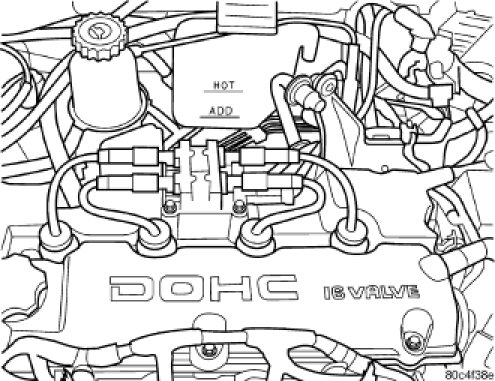

2.4LThe electronic ignition coil pack attaches directly to the valve cover.
1.
Install coil pack on valve cover. Tighten the bolts to 12 Nm (105 in. lbs.).
2.
Transfer spark plug cables to new coil pack. The coil pack towers are numbered with the cylinder identification. Be sure the
ignition cables snap onto the towers.
3.
Install the negative battery cable.
