Powertrain Control Module - Removal

REMOVAL





1. Disconnect the negative battery cable.

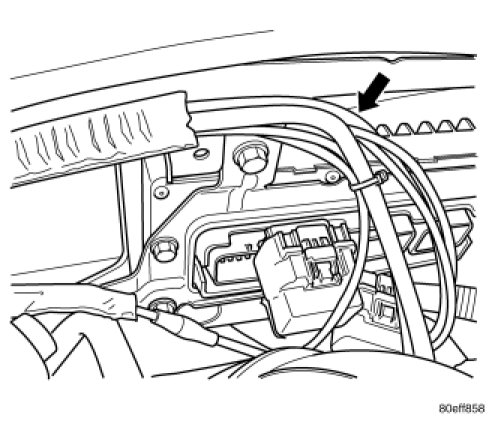

2. Remove plastic clips that hold the wiring harness to the support bracket.

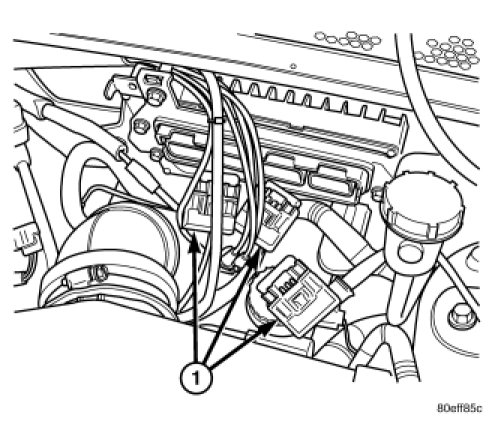

3. Unlock and disconnect the 3 or 4 electrical connectors (1) from the Powertrain Control Module (PCM).

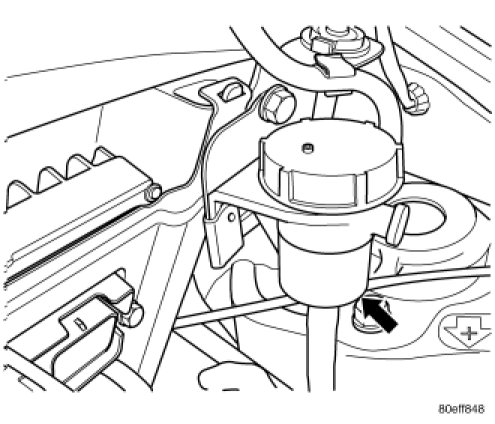

4. Remove the clutch reservoir and relocate.




5. Remove the four mounting bolts from the PCM mounting bracket.

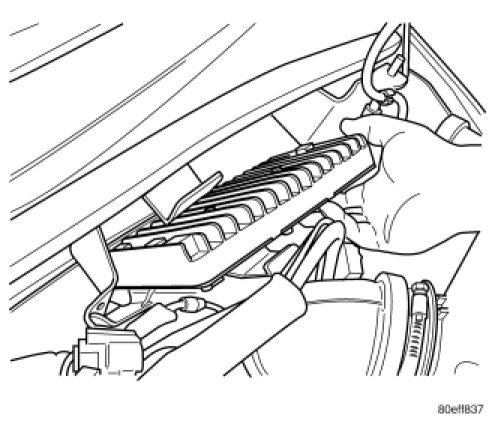

6. Remove PCM and mounting bracket.

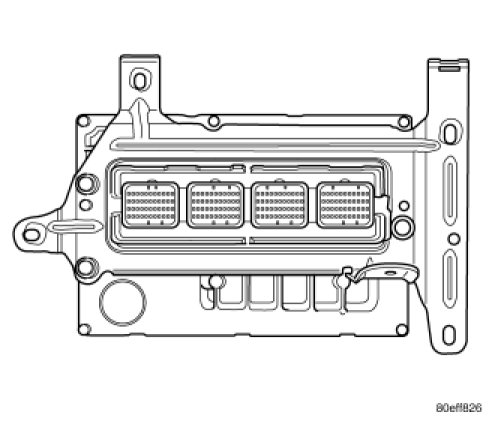

7. Remove the three mounting bolts from the PCM bracket to PCM.
