Installation

INSTALLATION





WARNING: Chrysler does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris

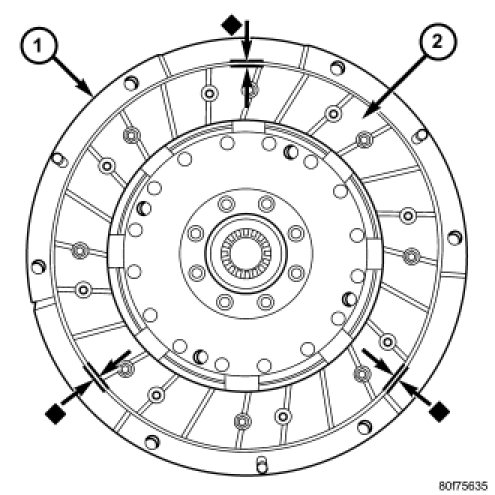

1. 2.4L Turbo models: Install clutch disc (2) to flywheel (1) with "Flywheel Side" oriented towards flywheel (1). Align clutch disc (2) to flywheel (1)by ensuring equal distance between disc and flywheel lip exists in three places as shown. Install pressure plate to flywheel, locating on dowels and making sure not to disturb clutch disc. Install and torque six pressure plate-to-flywheel bolts to 28 Nm (250 in. lbs.). Visually verify clutch disc alignment.
2. All models: Install clutch module onto input shaft.
3. Install transaxle into vehicle. Manual Transmission/Transaxle - Installation
