Installation







INSTALLATION

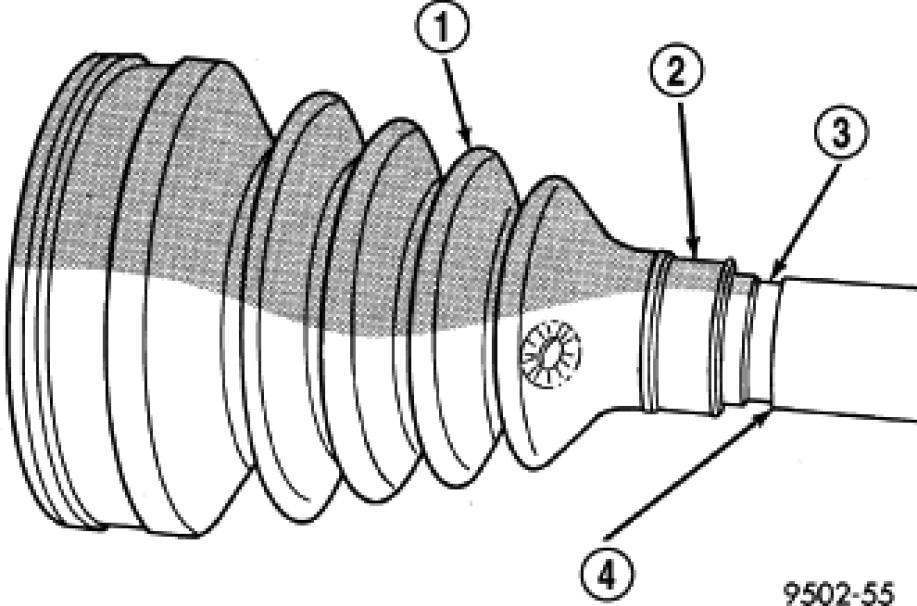

1. Slide new sealing boot clamp (2) onto interconnecting shaft (4). Slide the outer CV joint assembly sealing boot (1) onto the interconnecting shaft (4). Seal boot MUST be positioned on interconnecting shaft so the raised bead on the inside of the seal boot is in groove on interconnecting shaft.




NOTE: Always use a new circlip.

2. Align splines on interconnecting shaft with splines on cross of outer CV joint assembly and start outer CV joint onto interconnecting shaft.

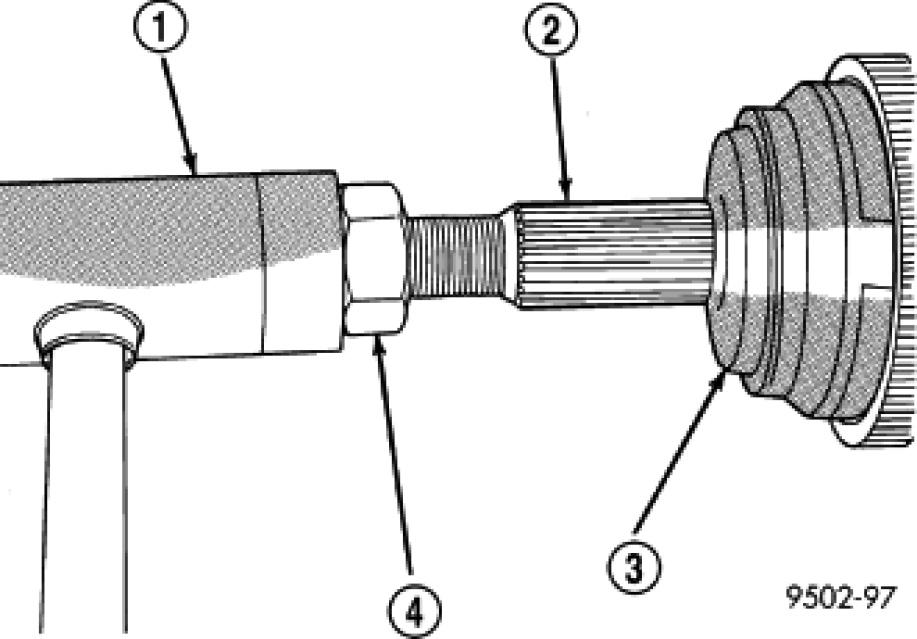

3. Install outer CV joint assembly onto interconnecting shaft by using a soft-faced hammer (1) and tapping end of stub axle (2) (with hub nut (4) installed) until outer CV joint (3) is fully seated on interconnecting shaft.




4. Outer CV joint assembly must be installed on interconnecting shaft until cross (2) of outer CV joint assembly (3) is seated against circlip on interconnecting shaft (1).




5. Distribute 1/2 the amount of grease provided in seal boot service package (DO NOT USE ANY OTHER TYPE OF GREASE) into outer CV joint assembly housing. Put the remaining amount into the sealing boot (4).
6. Install outer CV joint sealing boot to interconnecting shaft clamp evenly on sealing boot.

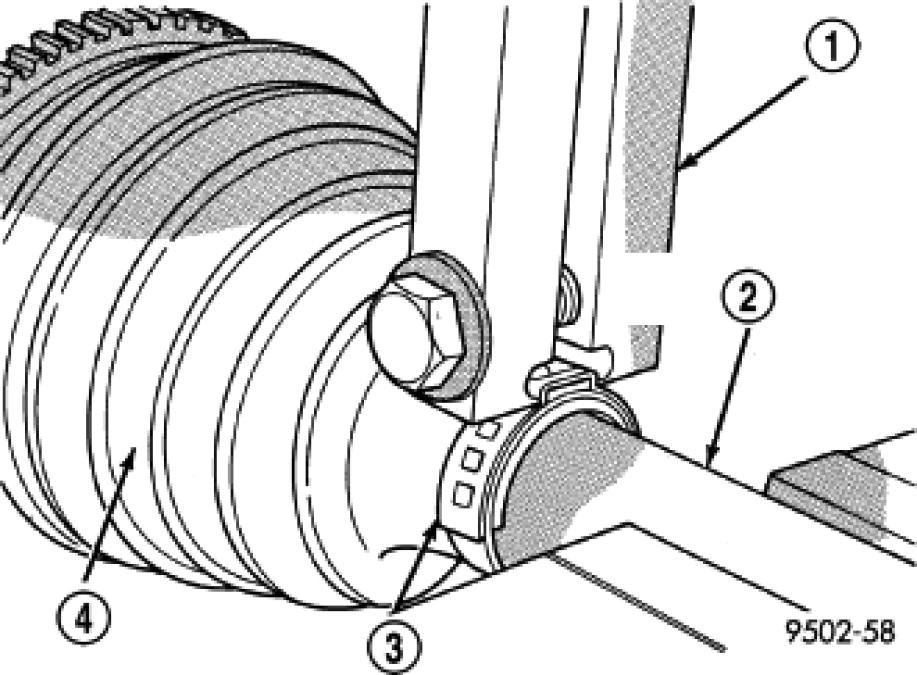

7. Clamp sealing boot onto interconnecting shaft (2) using crimper, Crimping Tool C-4975-A and the following procedure. Place Crimping Tool C-4975-A (1) over bridge of clamp (3).




8. Tighten nut on Crimping Tool C-4975-A until jaws on tool (2) are closed completely together, face to face.




CAUTION: Seal must not be dimpled, stretched, or out-of-shape in any way. If seal is NOT shaped correctly, equalize pressure in seal and shape it by hand.

9. Position outer CV joint sealing boot (4) into its retaining groove on outer CV joint housing. Install sealing boot to outer CV joint retaining clamp (1) evenly on sealing boot.

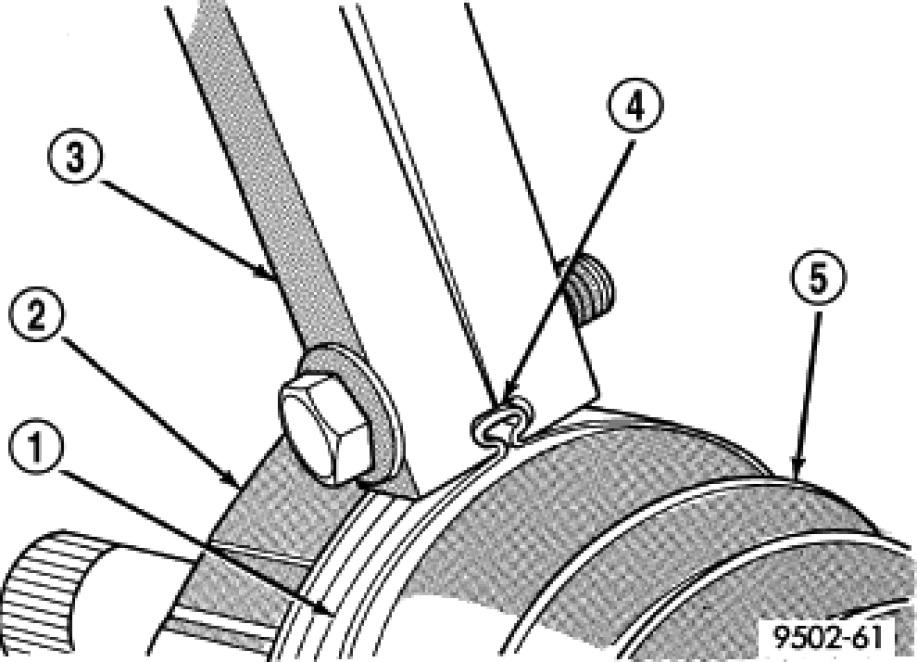

10. Clamp sealing boot onto outer CV joint housing using Crimping Tool C-4975-A (3) and the following procedure. Place Crimping Tool C-4975-A over bridge of clamp (1).




11. Tighten nut on Crimping Tool C-4975-A until jaws on tool are closed completely together (4), face to face.
12. Install the halfshaft requiring boot replacement back on the vehicle. Half Shaft - Installation
