STANDARD PROCEDURE - FRONT FOG LAMP UNIT ALIGNMENT

FOG LAMP UNIT ALIGNMENT

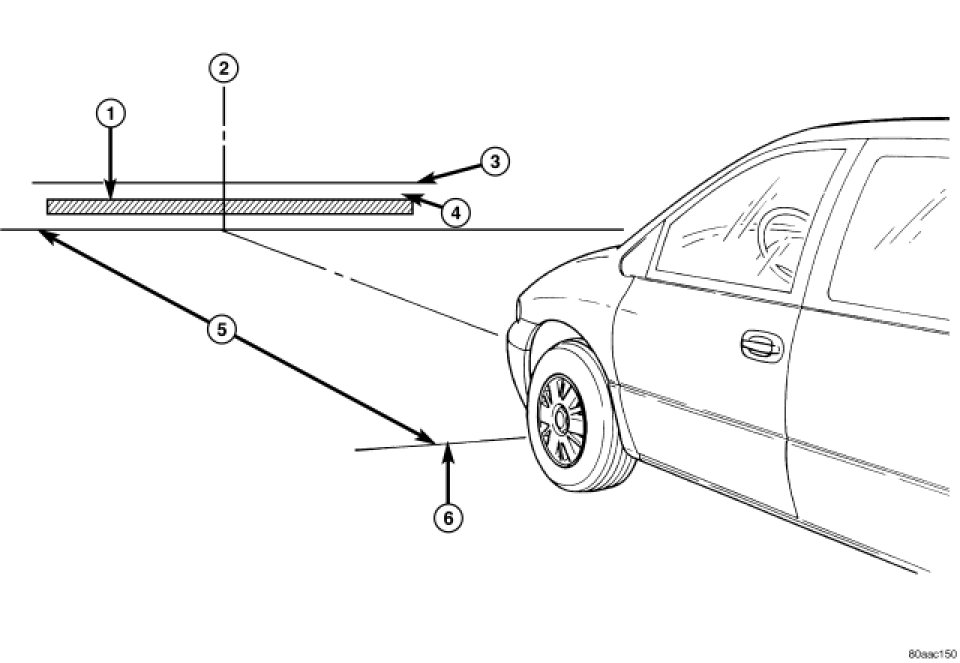

Prepare an alignment screenProcedures. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead. To improve visual interpretation of the fog lamp pattern on the alignment screen, the headlamps should be in the "off" position.

The fog lamps are adjusted by a adjustment screw at the top of the lamp.
