Splash Shield - Installation






INSTALLATION

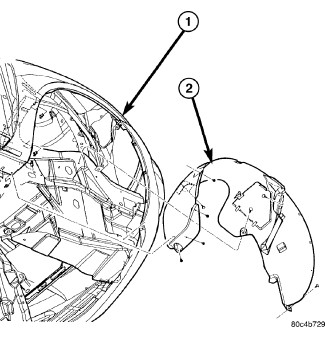

NOTE: Right hand splash shield shown in illustration. Left hand similar.





1. Position the front wheelhouse splash shield (2) to the vehicle.
2. Install the screws that secure the front wheelhouse splash shield to the front fender (1).
3. Install the push-pin fasteners that secure the front wheelhouse splash shield to frame rail rearward of suspension.
4. Install the push-pin fasteners that secure the front wheelhouse splash shield to the frame rail forward of suspension.
5. Install the front wheel Tires and Wheels - Installation.
6. Lower the vehicle.
