Instrument Panel Duct - Installation






INSTALLATION

AIR DISTRIBUTION DUCT

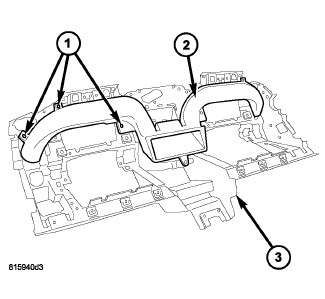

1. Position the air distribution duct (2) into the back of the instrument panel cover (3).
2. Install the six screws (1) that secure the air distribution duct to the instrument panel cover. Tighten the screws to 2 Nm (17 in. lbs.).
3. Install the instrument panel support into the instrument panel assembly Instrument Panel Support - Installation.
4. Install the instrument panel assembly Instrument Panel - Installation.

CENTER DUCT

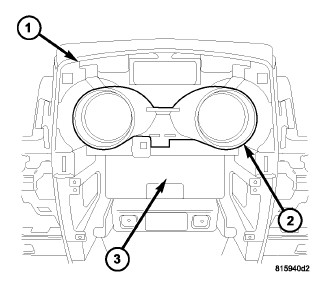

1. Position the center duct (2) into the opening in the instrument panel (1). Rotate and tilt the duct as necessary.
2. Engage the center duct to the air distribution duct (3). Make sure the retaining tabs are fully engaged.
3. Install the instrument panel center bezel Instrument Panel Bezel - Installation.
