Removal






REMOVAL

WARNING: The blower motor resistor may get very hot during normal operation. If the blower motor was turned on prior to servicing the blower motor resistor, wait five minutes to allow the blower motor resistors to cool before performing diagnosis or service. Failure to take this precaution may result in possible injury.

CAUTION: Do not operate the blower motor with the blower motor resistor removed from the circuit. Failure to follow these instructions may result in vehicle damage.

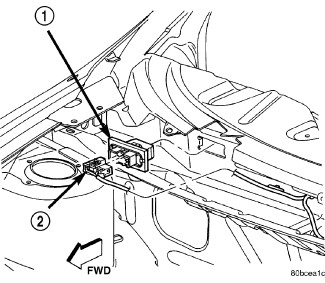

NOTE: LHD model shown. RHD model similar.

1. Disconnect and isolate the negative battery cable.
2. Remove the passenger side cowl grille screen Cowl Panel Cover - Removal.
3. Remove the blower motor resistor (1) from the dash panel by pulling the blower motor resistor straight out from the dash panel to disengage the two retaining tabs.
4. Disengage the connector lock and disconnect the wire harness connector (2) from the blower motor resistor.
