Installation
INSTALLATION 1.

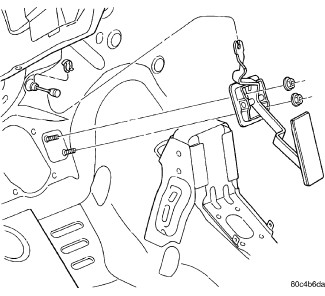

Position
accelerator pedal assembly on dash panel. Install retaining nuts. Tighten retaining nuts to 12 Nm (105 in. lbs.) torque.
2.
Place cable through slot in top of pedal shaft.
3.
While holding pedal lever, Push retainer clip forward in vehicle engaging it into the pedal lever.
4.
Hold the
throttle body lever in the wide open position and install the throttle cable.
