Power Window Switch - Removal






REMOVAL

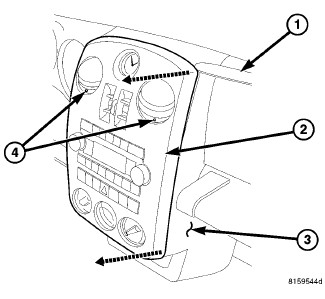

FRONT





1. Disconnect and isolate the battery negative cable.
2. Remove bezel. Instrument Panel Bezel - Removal
3. Disconnect electrical harness connector.
4. Using a trim stick (1) (special tool #C-4755) or equivalent, gently pry switch from the bezel.

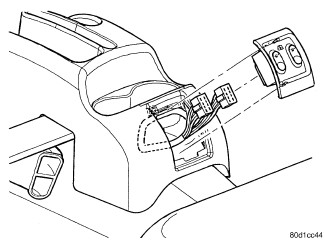

REAR - SEDAN ONLY





1. Disconnect and isolate the battery negative cable.
2. Using a trim stick (special tool #C-4755) or equivalent, gently pry at the top of the switch.
3. Remove switch and disconnect electrical harness connectors.
