Wiper Motor: Testing and Inspection
FRONT WIPER MOTORWhenever a
wiper motor malfunction occurs, verify that the wire harness is properly connected, then start normal diagnosis and repair procedures. Refer to the

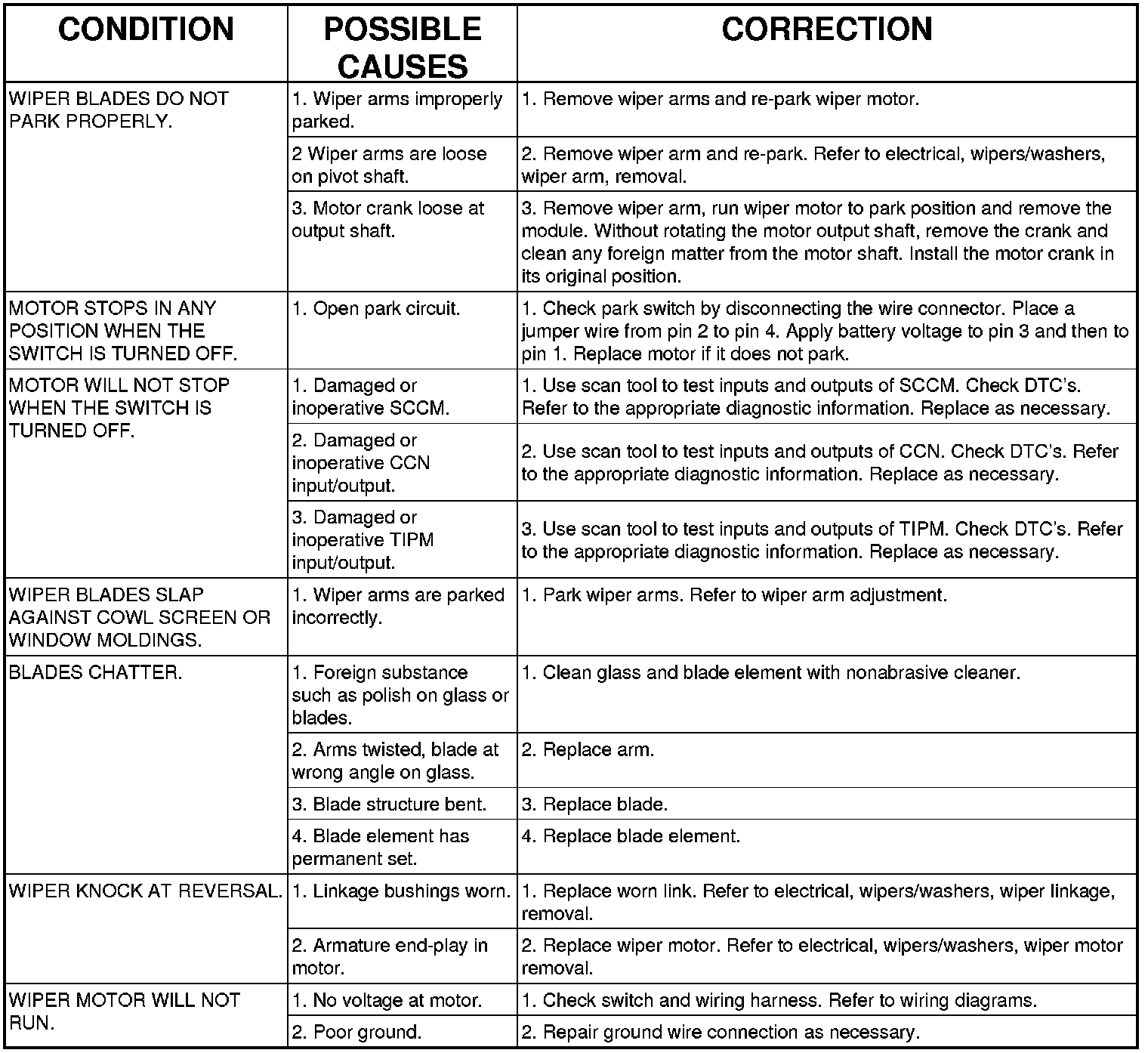

FRONT WIPER MOTOR DIAGNOSIS table.
FRONT WIPER MOTOR DIAGNOSIS
