Part 3

DISASSEMBLY

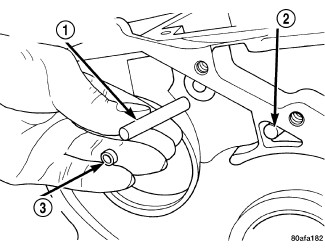

66. Using a suitable punch, drive out park guide bracket pivot shaft (2) plug.

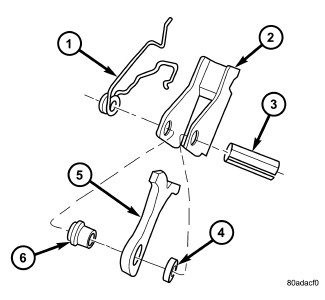

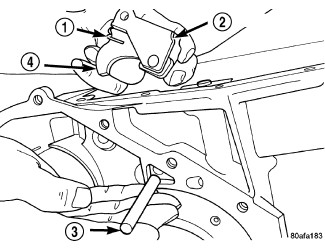

67. Using ordinary pliers, remove pivot shaft (3) and guide bracket assembly (2).










68. Inspect guide bracket (2) components for excessive wear and replace if necessary.










NOTE: The Low/Reverse Clutch Piston has bonded seals which are not individually serviceable. Seal replacement requires replacement of the piston assembly.

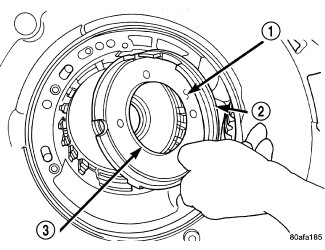

69. Remove low/reverse clutch piston (1).

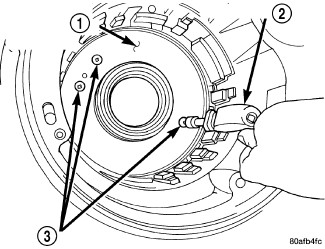

70. Remove low/reverse piston retainer-to-case screws (3).

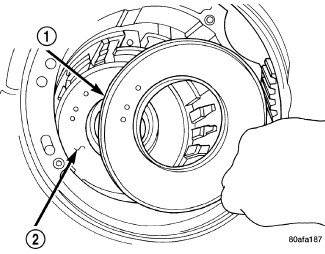

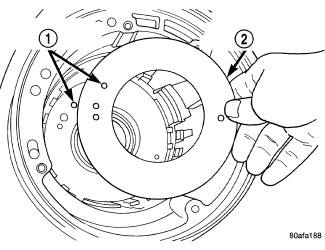

71. Remove low/reverse piston retainer (1).










72. Remove low/reverse piston retainer-to-case gasket (2).

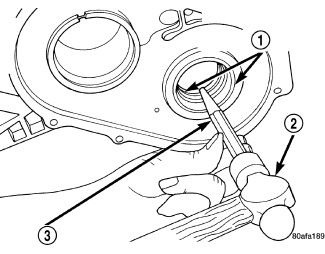

73. Using a hammer (2) and suitable drift (3), drive out inner output bearing cup (1).

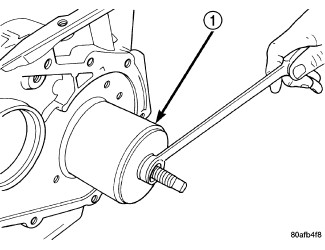

74. Using Remover 6062A (1), remove outer output bearing cup.
